TL T-Connectors for single conductor of bolt type

Online InquiryEmail Us

Specification



Catalog No. Suitable Conductor(mm2) Main Dimensions(mm) Weight
(kg)

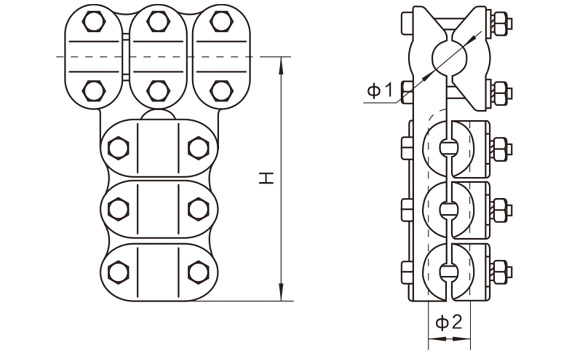

Bus conductor Ø1 Ø2 H L
TL-45 185~240 300~400 22.0 28.0 210 118 2.6
TL-53 300~400 120~150 28.0 17.5 168 2.6
TL-54 300~400 185~240 28.0 22.0 168 2.7
TL-55 300~400 300~400 28.0 28.0 196 3.0
TL-56 300~400 500~630 28.0 34.5 196 3.1
TL-64 500~630 185~240 34.5 22.0 196 3.3
TL-65 500~630 300~400 34.5 28.0 196 3.4
TL-66 500~630 500~630 34.5 34.5 196 3.6

Clamp bodies and keepers are aluminium, the other parts are steel and hot-dip galvanized.
