Cable ClampJGW High voltage cable cleat
Back

JGW High voltage cable cleat

The product is made of high-strength anti-corrosive aluminum alloy to secure the placement of cables. Its fixture is anchored by bolts. The retaining clip is compact, reasonable in conformation, easy and flexible for installation and does not do harm to the cable.

Online InquiryEmail Us

Application

The product is made of high-strength anti-corrosive aluminum alloy to secure the placement of cables. Its fixture is anchored by bolts. The retaining clip is compact, reasonable in conformation, easy and flexible for installation and does not do harm to the cable.

Structure feature

◆ Made of high-strength aluminum alloy, with no hysteresis loss.
◆ Utilizes a screw compression structure, making installation convenient.
◆ Equipped with rubber pads, significantly enhancing insulation effect and protecting the cable from damage.


Specification

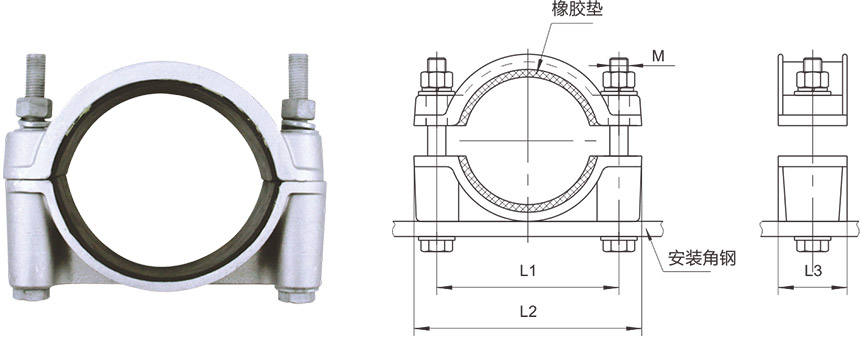

JGW型高压电缆固定夹


Catalog No. Applicable outside diameter of cable Main dimensions(mm)
L1 L2 L3 M
JGW-1 75~85 120 150 60 2-M12
JGW-2 85~95 130 160 60 2-M12
JGW-3 95~105 140 175 60 2-M12
JGW-4 105~115 150 185 70 2-M14
JGW-5 115~125 160 195 70 2-M14
JGW-6 125~135 175 215 70 2-M14
JGW-7 135~145 190 230 80 2-M16
JGW-8 145~165 200 240 90 2-M16

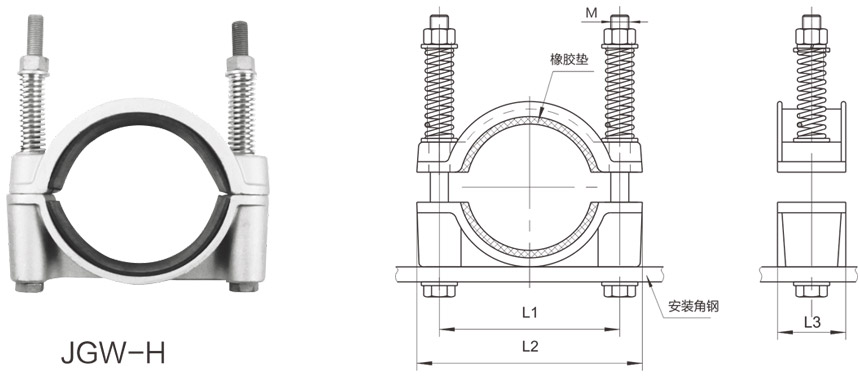

JGW-H型高压电缆固定夹


Catalog No. Applicable outside diameter of cable Main dimensions(mm)
L1 L2 L3 M
JGW-1H 75~85 120 150 60 2-M12
JGW-2H 85~95 130 160 60 2-M12
JGW-3H 95~105 140 175 60 2-M12
JGW-4H 105~115 150 185 70 2-M14
JGW-5H 115~125 160 195 70 2-M14
JGW-6H 125~135 175 215 70 2-M14
JGW-7H 135~145 190 230 80 2-M16
JGW-8H 145~165 200 240 90 2-M16

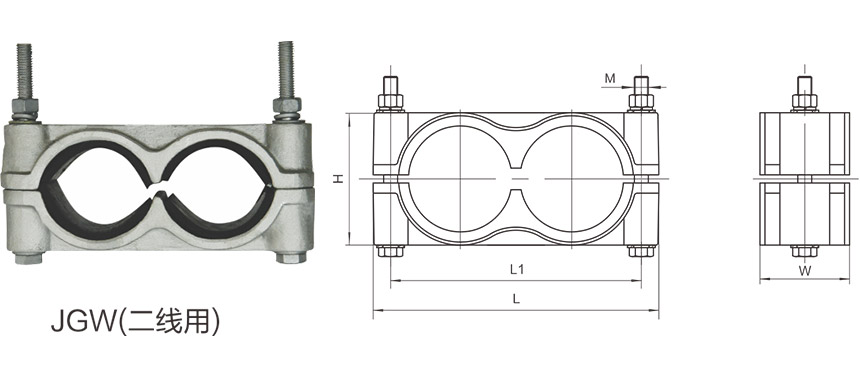

JGW型高压电缆固定夹(双线用)


Catalog No. Applicable outside diameter of cable (mm) Main dimensions(mm)
L W H L1 M
JGW(2)-1 40~50 174 60 78 140 12
JGW(2)-2 50~60 194 60 92 160 12
JGW(2)-3 60~70 219 70 100 185 12
JGW(2)-4 70~80 239 70 110 205 12
JGW(2)-5 80~90 259 80 126 225 12
JGW(2)-6 90~100 279 80 136 245 12
JGW(2)-7 100~110 304 90 150 270 16
JGW(2)-8 110~120 324 90 160 290 16
JGW(2)-9 120~130 344 90 120 310 16
JGW(2)-10 130~140 364 100 190 330 16
JGW(2)-11 140~150 384 100 200 350 16

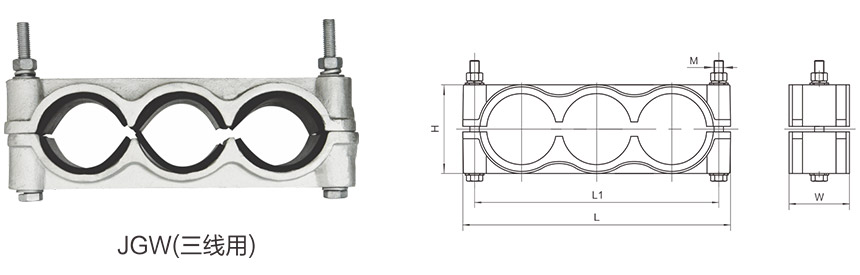

JGW型高压电缆固定夹(三线用)


Catalog No. Applicable outside diameter of cable (mm) Main dimensions(mm)
L W H L1 M
JGW(3)-1 40~50 239 60 86 205 12
JGW(3)-2 50~60 269 60 96 245 12
JGW(3)-3 60~70 304 70 106 270 12
JGW(3)-4 70~80 334 70 116 300 12
JGW(3)-5 80~90 364 75 126 330 12
JGW(3)-6 90~100 387 78 136 353 12
JGW(3)-7 100~110 426 90 150 392 16
