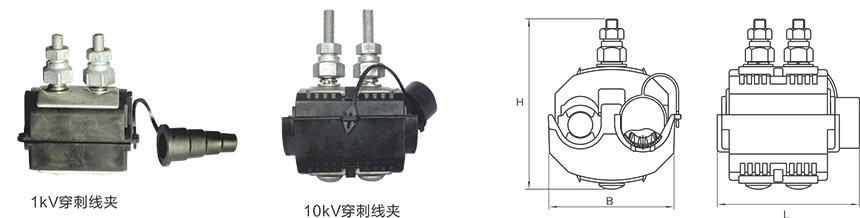

JBC series pumctured cord grip

产品用途

适用于10kV及以下绝缘配电线路中，不剥皮的线路跳线对接、分支接续装置。

产品特点

◆Puncture structure, to insure the puncture pressure, and it's easy to fix.
◆Pressurized structure, corrosion protection, and have a longevity of service
◆Contact resistance is small, and the temperature of cord grip is low.
◆It's connected with different pathway lead, and it's useful.
◆Insulating property is wonderful.

Specification

Application of voltage	Catalog No.	Main wire (mm²)	Branch wire (mm²)	Main Dimensions(mm)			Bolt No.	载流量 (A)
Application of voltage	Catalog No.	Main wire (mm²)	Branch wire (mm²)	L	B	H	Bolt No.	载流量 (A)
1kV	JBC-1.5~35/1.5~10	1.5~35	1.5~10	25	35	S3	1	75
1kV	JBC-10~50/1.5~10	10~50	1.5~10	30	32	49	1	75
1kV	JBC-25~95/1.5~10	25 ~95	15 ~10	33	39	58	1	75
1kV	JBCM6 ~95/4 ~35	16~95	4~35	45	43	74	1	200
1kV	JB035 ~150/6 ~50	35~150	6~50	45	50	74	1	200
1kV	JBC-16~70/16~70	16~70	16~70	53	52	84	1	250
1kV	JBC-16~120/16~120	16~120	16~120	53	52	84	1	300
1kV	JBC-35~150/35~150	35 ~150	35 ~150	52	56	84	1	350
1kV	JBC~70~185/16~95	70 ~185	16~95	68	73	103	2	330
1kV	JBC-150~240/16~50	150~240	16~50	83	76	103	2	200
ikv	JB0120 ~240/25~120	120 ~240	25 ~120	79	60	94	2	400
1kV	JB095 ~240/50~150	95 ~240	50 ~150	76	78	103	2	450
1kV	JB095 ~240/95 ~240	95 ~240	95 ~240	79	64	94	2	550
10kV	JBC10-25 ~95乃6 ~70	25 ~95	16~70	83	68	98	2	270
10kV	JBC10-25-50/25-50	25-50	25-50	94	72	115	2	200
10kV	JBC10-70 ~120/25~50	70 ~120	25 ~50	94	77	115	2	200
10kV	JBC10-70 ~120/70~120	70 ~120	70 ~120	95	79	115	2	400
10kV	JBC10-150~240/70~120	150~240	70 ~120	95	86	115	2	400
10kV	JBC10-95 ~240/95 ~240	95 ~240	95 ~240	95	90	115	2	550
10kV	JBC10-150 ~240/25 ~50	150~240	25 ~50	95	86	115	2	200
10kV	JBC10_95~240/16~50	95~240	16 ~50	83	76	113	2	200
10kV	JBC10-95 - 240/50-150	95 - 240	50-150	83	86	113	2	450
10kV	JBC10-150~300/35~150	150~300	35 ~150	83	92	118	2	450
10kV	JBC10-150~300/150~300	150 ~300	150~300	85	100	136	2	600
