NXJ series four-cores-centralized strain clamp

NXJ four-core-centralized strain clamp is suitable for the end of aerial wire terminal, its action is fixing or tightening the ins- ulation conductor. the clamp has ben designed four core parallel groove, after clamping the four insulation conductor (not remove the insulation layer) tighten up the bolt to have large grip strength.

Application

NXJ four-core-centralized strain clamp is suitable for the end of aerial wire terminal, its action is fixing or tightening the ins- ulation conductor. the clamp has ben designed four core parallel groove, after clamping the four insulation conductor (not remove the insulation layer) tighten up the bolt to have large grip strength.

Specification

Catalog No. Suitable Conductor(mm2) Explanation Product legend

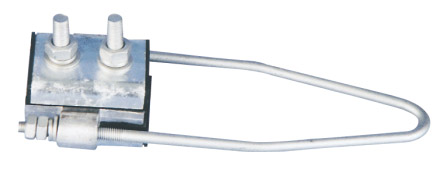

NXJ4-1A 4X16~50 Pull rod type, Aluminum alloy body.
NXJ4-2A 4X70~120

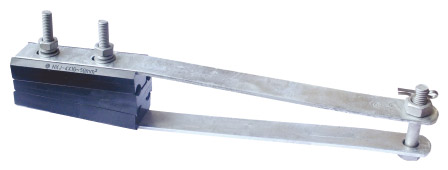

NXJ4-1B 4X25~50 Pull plate, The body is weather resistant engineering plastics.
NXJ4-2B 4X70~120
