Tubular Bus-bar Expansion Joints (type MGS)

Online InquiryEmail Us

Specification

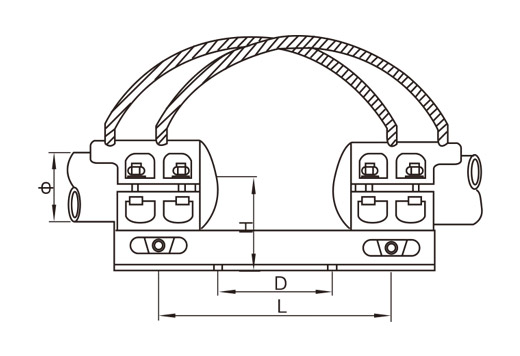

Catalog No. Bus-Bar Dia.
(mm) 		Main Dimensions(mm) WeigHt
(kg)
中 SR H M
MGZ-50 50/45 45 45 10 8 3.0
MGZ-60 60/54 54 70 10 8 3.7
MGZ-70 70/64 64 70 15 8 3.8
MGZ-80 80/72 72 70 15 8 4.0
MGZ-90 90/80 80 80 20 8 4.3
MGZ-100 100/90 90 80 25 8 4.5
MGZ-110 110/100 100 90 25 10 4.6
MGZ-120 120/110 110 90 25 10 4.8
MGZ-130 130/116 116 90 25 10 4.9
MGZ-150 150/136 136 150 30 10 7.4
MGZ-170 170/156 156 170 30 10 12.5
MGZ-200 200/180 180 200 30 12 23.5
MGZ-250 250/230 230 250 40 12 42.5

Note: The D dimension of the hardware can be determined according to the user's requirements. Please specify when placing the order, for example: MGS-120/Ø250(4-Ø18).
