InDoor supports for bar (vertiCal setting)

Online InquiryEmail Us

Specification

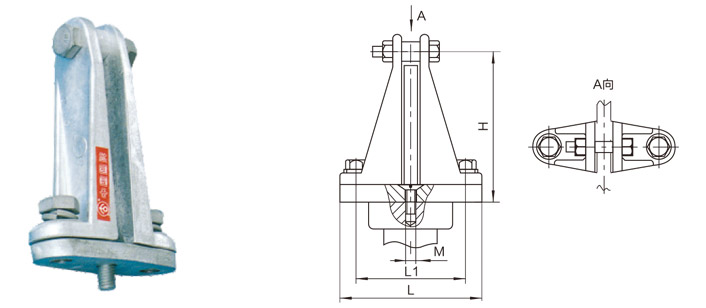

Indoor supports for single piedes bar (vertidal setting)


Catalog No. Bus width
(mm) 		Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MNL-101 63 82 90 60 10 0.9
MNL-102 80 100 90 60 10 1.0
MNL-103 100 120 90 60 10 1.1
MNL-104 125 145 90 60 10 1.2
MNL-105 63 82 90 60 16 0.9
MNL-106 80 100 90 60 16 1.0
MNL-107 100 120 90 60 16 1.1
MNL-108 125 145 90 60 16 1.2

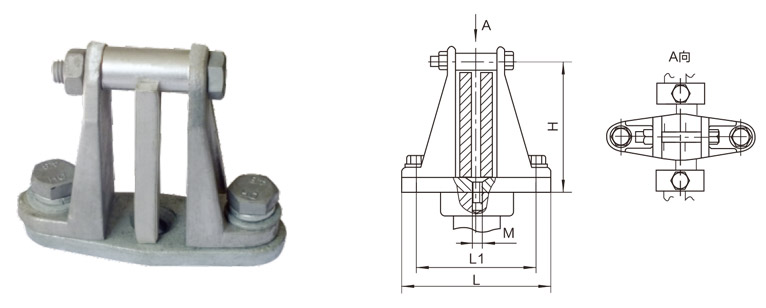

Indoor supports for two pieces bar (vertical setting)


Catalog No. Bus width
(mm) 		Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MNL-201 63 82 113 83 10 0.9
MNL-202 80 100 113 83 10 1.0
MNL-203 100 120 113 83 10 1.1
MNL-204 125 145 113 83 10 1.2
MNL-205 63 82 113 83 16 0.9
MNL-206 80 100 113 83 16 1.0
MNL-207 100 120 113 83 16 1.1
MNL-208 125 145 113 83 16 1.2

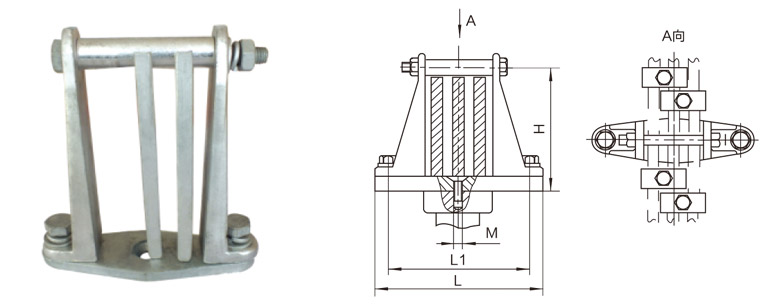

Indoor supports for three pieces bar (vertical setting)


Catalog No. Bus width (mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MNL-301 63 82 130 100 10 0.9
MNL-302 80 100 130 100 10 1.0
MNL-303 100 120 130 100 10 1.1
MNL-304 125 145 130 100 10 1.2
MNL-305 63 82 130 100 16 0.9
MNL-306 80 100 130 100 16 1.0
MNL-307 100 120 130 100 16 1.1
MNL-308 125 145 130 100 16 1.2
