InDoor supports for bar (Horizontal setting)

Online InquiryEmail Us

Specification

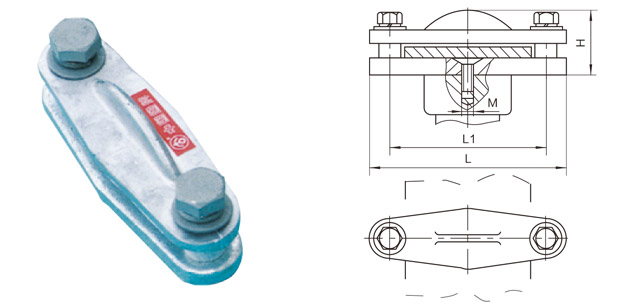

Indoor supports for single pieces bar (horizontal setting)


Catalog No. Bus width(mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MNP-100 40 35 90 60 10 0.3
MNP-101 63 38 113 83 10 0.4
MNP-102 80 42 130 100 10 0.5
MNP-103 100 46 150 120 10 0.6
MNP-104 125 48 175 145 10 0.6
MNP-105 63 38 113 83 16 0.4
MNP-106 80 42 130 100 16 0.5
MNP-107 100 46 150 120 16 0.6
MNP-108 125 48 175 145 16 0.6

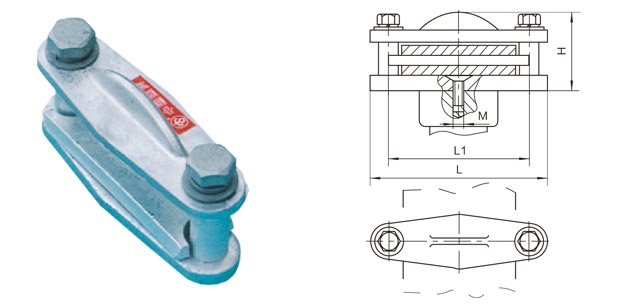

Indoor supports for two pieces bar (horizontal setting)


Catalog No. Bus width (mm) Main Dimensions(mm) WeigHt
(kg)
H L L1 M
MNP-201 63 58 113 83 10 0.7
MNP-202 80 62 130 100 10 0.8
MNP-203 100 66 150 120 10 1.0
MNP-204 125 68 175 145 10 1.0
MNP-205 63 58 113 83 16 0.7
MNP-206 80 62 130 100 16 0.8
MNP-207 100 66 150 120 16 1.0
MNP-208 125 68 175 145 16 1.0


Indoor supports for tHree pieces bar (horizontal setting)


Catalog No. Bus width(mm) Main Dimensions(mm) 参考
重量
(kg)
H L L1 M
MNP-301 63 78 113 83 10 0.9
MNP-302 80 82 130 100 10 0.9
MNP-303 100 86 150 120 10 1.2
MNP-304 125 88 175 145 10 1.3
MNP-305 63 78 113 83 16 0.8
MNP-306 80 82 130 100 16 0.9
MNP-307 100 86 150 120 16 1.1
MNP-308 125 88 175 145 16 1.2


Indoor supports for four pieces bar (horizontal setting)


Catalog No. 母线宽度(mm) Main Dimensions(mm) 参考
重量
(kg)
H L L1 M
MNP-401 63 98 113 83 10 1.1
MNP-402 80 102 130 100 10 1.1
MNP-403 100 106 150 120 10 1.4
MNP-404 125 108 175 145 10 1.5
MNP-405 63 98 113 83 16 1.0
MNP-406 80 102 130 100 16 1.1
MNP-407 100 106 150 120 16 1.3
MNP-408 125 108 175 145 16 1.4
