Substation Busbar FittingDead-end Caps(type MGF)
Back

Dead-end Caps(type MGF)

Online InquiryEmail Us

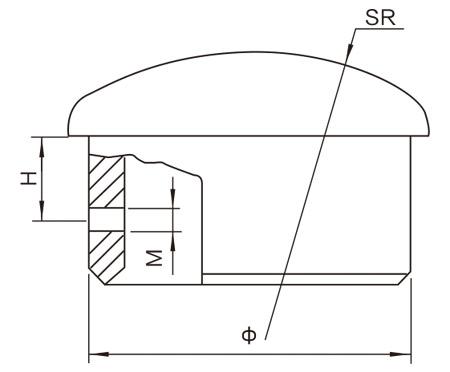

Specification


Catalog No. Bus-Bar Dia.
(mm) 		Main Dimensions (mm) WeigHt
(kg)
中 SR H M
MGF-50 50/45 45 50 10 8 0.14
MGF-60 60/54 54 65 15 8 0.17
MGF-70 70/64 64 70 15 8 0.20
MGF-80 80/72 72 70 15 8 0.30
MGF-90 90/80 80 80 15 8 0.35
MGF-100 100/90 90 80 15 8 0.43
MGF-110 110/100 100 80 15 10 0.50
MGF-120 120/110 110 120 15 10 0.55
MGF-130 130/116 116 120 15 10 0.68
MGF-150 150/136 136 150 15 10 1.00
MGF-170 170/156 156 160 15 10 1.30
MGF-200 200/180 180 200 25 10 1.50
MGF-250 250/230 230 250 25 10 2.90

Note: If the inner diameter of the busbar used by the customer is different from the above dimensions, please specify this when placing the order.
