Overhead Line ConnectorTL T-Connectors for single conductor of bolt type
Back

TL T-Connectors for single conductor of bolt type

Online InquiryEmail Us

Specification



Catalog No. Suitable Conductor(mm2) Main Dimensions(mm) Weight
(kg)

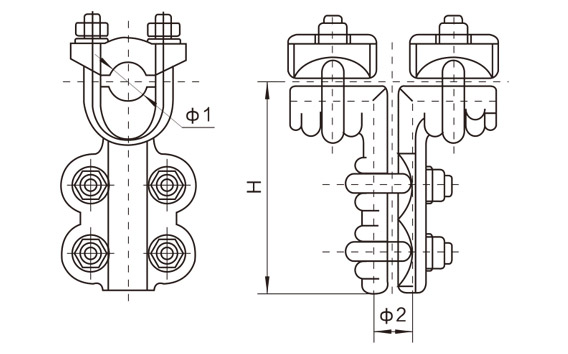

Bus conductor Ø1 Ø2 H L
TL-11 7.5~9.6 7.5~9.6 10 10 118 0.71
TL-21 10.8~14.0 7.5~9.6 14 10 118 0.78
TL-22 10.8~14.0 10.8~14.0 14 14 120 0.79
TL-31 14.5~17.5 7.5~9.6 18 10 118 1.07
TL-32 14.5~17.5 10.8~14.0 18 14 120 1.06
TL-33 14.5~17.5 14.5~17.5 18 18 120 1.05
TL-41 18.1~22.0 7.5~9.6 23 10 118 1.13
TL-42 18.1~22.0 10.8~14.0 23 14 120 1.13
TL-43 18.1~22.0 14.5~17.5 23 18 120 1.12
TL-44 18.1~22.0 18.1~22.0 23 22 120 1.17
TL-51 22.4~25.2 7.5~9.6 26 10 118 120 2.60
TL-52 22.4~25.2 10.8~14.0 28 14 118 120 2.50
TL-53 22.4~25.2 14.5~17.5 28 18 118 120 2.50
TL-54 22.4~25.2 18.1~22.0 28 22 118 120 2.50
TL-55 22.4~25.2 22.4~25.2 28 28 118 120 2.50
TL-500/500 30.0~30.9 30.2 31 31 199 146 3.60
TL-630/630 33.6~34.8 32.5 34.5 34.5 199 146 3.60

Clamp bodies and keepers are aluminium, the other parts are steel and hot-dip galvanized.
