Overhead Line ConnectorJH type wire clip
Back

JH type wire clip

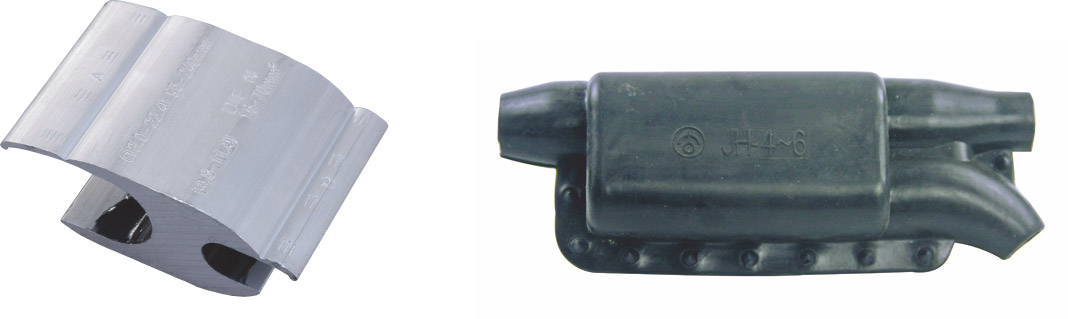

The JH special-shaped and stranded line clamp is suitable for non-bearing connection and branching of conductors in overhead lines. The product can be optionally equipped with an insulating cover for use as a protective insulator.

Online InquiryEmail Us

Application

JH series specific forms parallel groove clamp is suitable for unendure force splicing and branch on the aerial wire, being used with insulation cover,lt action is insulation protection.

Characteristics

Resistance is small, energy saving, safe and reliable operation;Using special tools for installation, ensure the installation quality;A variety of materials, wire connected freely.



Specification

Catalog No. Principal line Branch line Length Moulding-die number of times
Suitable Conductor Dia(mm) Suitable Conductor Dia(mm)
JH-1 16~35 4.8~8.2 16~35 4.8~8.2 38 O 3
JH-2 50~95 8.3~14.5 16~50 4.8~9.5 48 D 3
JH-3 50~95 10.0~14.5 50~95 10.0~14.5 60 D 5
JH-4 95~240 13.0~22.5 16~70 4.8~11.5 51 N 4
JH-5 95~240 13.0~22.5 70~150 11.5~16.0 51 N 4
JH-6 150~240 16.2~22.5 150~240 16.2~22.5 89 N 5
