T-connectors(Hydraulic Compression Type)

Online InquiryEmail Us

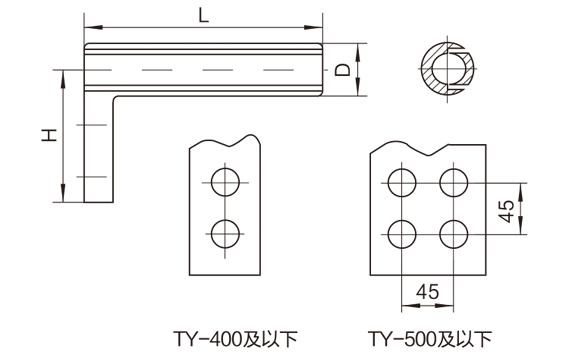

Specification



Catalog No. 适应导线(mm2) Main Dimensions(mm) Weight
(kg)
L H D
TY2-240 LGJ-240 170 128 38 1.2
TY2-300 LGJ-300,LGJQ-300 180 132 40 1.3
TY2-400 LGJ-400,LGJQ-400 190 140 45 1.4
TY2-500 LGJQ-500 200 139 50 1.7
TY2-600 LGJQ-600 220 142 55 1.9

线夹本体和抽匣为铝制件。
