Overhead Line ConnectorCopper connecting clamps(wintersweet type)
Back

Copper connecting clamps(wintersweet type)

Online InquiryEmail Us

Specification

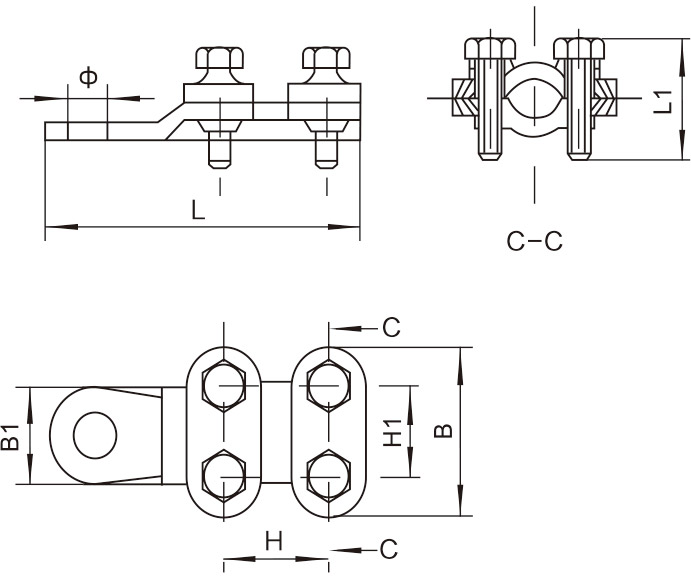

Catalog No. Conductor Main Dimensions(mm)
(mm2) L L1 B B1 H H1 Ø
WCJB-1 16~25 39.5 16 25 16.5 13.0 13.0 8.5
WCJB-2 25 ~35 45.0 16 22 18.0 13.0 13.0 8.5
WCJB-3 35 ~50 52.5 18 24.5 22.0 13.5 13.5 10.5
WCJB-4 50 ~70 61.0 20 31 23.0 18.5 18.5 10.5
WCJB-5 70 ~95 69.0 25 35 23.5 20.0 20.0 10.5
WCJB-6 95~120 74.0 30 42 28.5 22.5 22.5 13.5
WCJB-7 120-150 74.0 30 41 27.0 24.0 24.0 13.5
WCJB-8 150~185 76.0 30 42 28.0 24.5 24.5 13.5
WCJB-9 185~240 80.0 32 44 30.0 25.0 25.0 13.5

It adopts red copper
