Overhead Line ConnectorCopper to aluminium adapter board
Back

Copper to aluminium adapter board

Online InquiryEmail Us

Specification

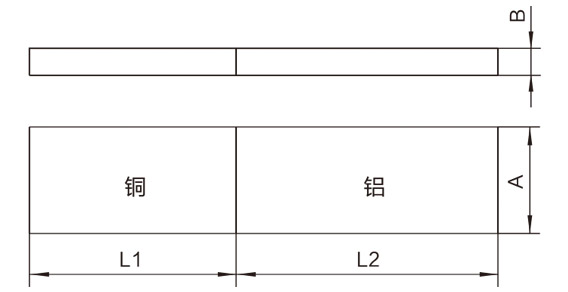

Catalog No. Conductor bus (mm2) Main Dimensions(mm) Weight
(kg)
A L1 L2 B
MG-50x5 50x5 50 50 60 5 0.2
MG-63x6.3 63x6.3 63 68 85 6.3 0.3
MG-63x8 63x8 63 68 85 8 0.4
MG-63x10 63x10 63 68 85 10 0.5
MG-80x6.3 80x6.3 80 85 100 6.3 0.5
MG-80x8 80x8 80 85 100 8 0.7
MG-80x10 80x10 80 85 100 10 0.8
MG-100x8 100x8 100 105 120 8 1.0
MG-100x10 100x10 100 105 120 10 1.3
MG-125x8 125x8 125 130 140 8 1.5
MG-125x10 125x10 125 130 140 10 1.9
MG-125x12.5 125x12.5 125 130 140 12.5 2.4
