Copper bus-bar expansion joint

Online InquiryEmail Us

Specification

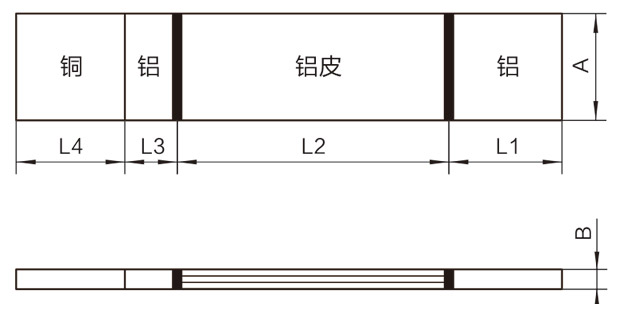

Catalog No. Main Dimensions(mm)
A L1 L2 L3 L4 B
MSS-4x40 40 60 170 35 65 4
MSS-5x50 50 70 170 35 65 5
MSS-6x60 60 80 190 35 70 6
MSS-6.3x63 63 80 190 35 70 6.3
MSS-6x80 80 90 190 35 85 6
MSS-8x80 80 90 190 35 85 8
MSS-10x80 80 90 190 35 85 10
MSS-8x100 100 115 220 35 110 8
MSS-10x100 100 115 220 35 110 10
MSS-10x120 120 140 220 35 135 10
MSS-10x125 125 140 220 35 135 10
MSS-12x120 120 140 220 35 135 12
MSS-12x125 125 140 220 35 135 12
MSS-12.5x125 125 140 220 35 135 12.5
