TerminAl connector for Double-Bundle conductor(Compression Type C)

Online InquiryEmail Us

Specification

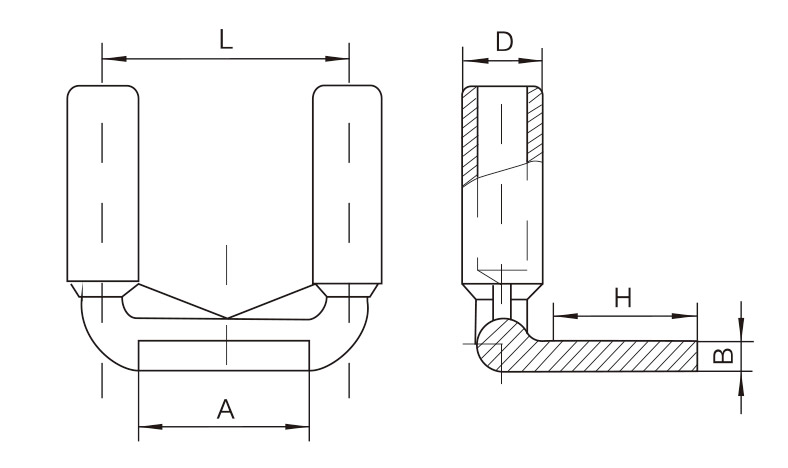

Catalog No. Suitable Conductor (mm2) Main Dimensions(mm) Weight (kg)
D A H B L
SSY-240/40C-120 LGJ-240/30-40 36 80 85 14 120 1.60
SSY-300/40C-120 LGJ-300/25-40 40 100 105 16 120 1.90
SSY-400/35C-120 LGJ-400/35 45 100 105 16 120 2.10
SSY-400/50C-120 LGJ-400/50 45 100 105 16 120 2.10
SSY-500/65C-120 LGJ-500/65 52 125 130 20 120 2.30
SSY-240/40C-200 LGJ-240/30-40 36 80 85 14 200 1.80
SSY-300/40C-200 LGJ-300/25-40 40 100 105 16 200 1.90
SSY-400/35C-200 LGJ-400/35 45 100 105 16 200 2.55
SSY-400/50C-200 LGJ-400/50 45 100 105 16 200 2.55
SSY-500/65C-200 LGJ-500/65 52 125 130 20 200 2.60
SSY-630/45C-200 LGJ-630/45 60 125 130 20 200 3.30
SSY-630/55C-200 LGJ-630/55 60 125 130 20 200 3.30
SSY-800/55C-200 LGJ-800/55 65 150 155 22 200 3.50
SSY-300/40C-400 LGJ-300/25-40 40 100 105 16 400 2.70
SSY-400/35C-400 LGJ-400/35 45 100 105 16 400 3.00
SSY-400/50C-400 LGJ-400/50 45 100 105 16 400 3.00
SSY-500/45C-400 LGJ-500/35-45 52 125 130 20 400 3.20
SSY-500/65C-400 LGJ-500/65 52 125 130 20 400 3.30
SSY-630/45C-400 LGJ-630/45 60 125 130 20 400 4.10
SSY-630/55C-400 LGJ-630/55 60 125 130 20 400 4.10
SSY-800/55C-400 LGJ-800/55 65 150 155 22 400 4.50

Aluminium prdduction:pay attention to:when ordering it,please give clear indication of the specification,because connection block is different from the sample production.
