DTGA Spy hole copper connecting terminAls

Specification


Spy hole copper connecting terminAls

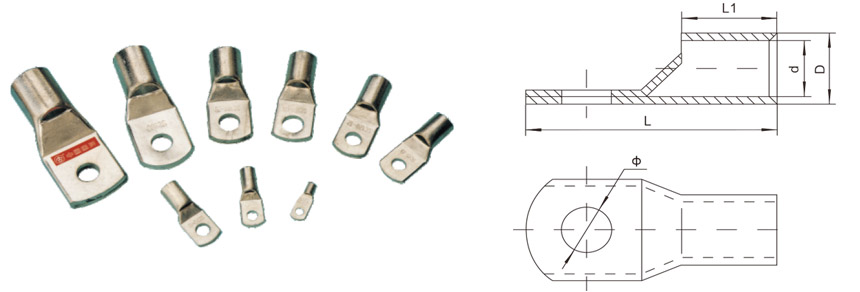

Catalog No. Main Dimensions(mm) Catalog No.
Ø D d L L1
DTGA-4 6.2 4.8 3.1 21.0 6.4 SC-4
DTGA-6 6.2 5.5 3.8 24.0 9.0 SC-6
DTGA-10 6.2 6.8 1.8 25.5 10.0 SC-10
DTGA-16 8.2 7.5 6.5 30.5 12.0 SC-16
DTGA-25 8.2 9.0 7.0 34.0 14.0 SC-25
DTGA-35 10.5 10.5 8.2 38.0 14.0 SC-35
DTGA-50 10.5 12.5 9.8 45.0 18.0 SC-50
DTGA-70 12.5 14.5 11.5 50.0 18.6 SC-70
DTGA-95 12.5 17.5 13.8 55.5 23.5 SC-95
DTGA-120 12.5 19.5 15.5 63.0 24.0 SC-120
DTGA-150 16.5 20.5 16.5 71.0 26.0 SC-150
DTGA-185 16.5 23.5 18.8 78.0 33.0 SC-185
DTGA-240 16.5 26.5 21.0 92.0 37.0 SC-240
DTGA-300 16.5 30.0 24.0 102.0 39.5 SC-300
DTGA-400 16.5 34.0 26.5 113.0 46.0 SC-400
DTGA-500 20.5 38.0 30.0 123.0 50.0 SC-500
DTGA-630 20.5 45.0 35.0 135.0 58.0 SC-630
DTGA-800 22.5 50.0 39.0 170.0 73.0 SC-800
DTGA-1000 22.5 56.0 44.0 200.0 89.0 SC-1000
