Overhead Line ConnectorAluminium terminAl connector
Back

Aluminium terminAl connector

Online InquiryEmail Us

Specification



Aluminium terminAl connectors(2010 CatAlog)


Catalog No. Conductor (mm2) Number
of bolt

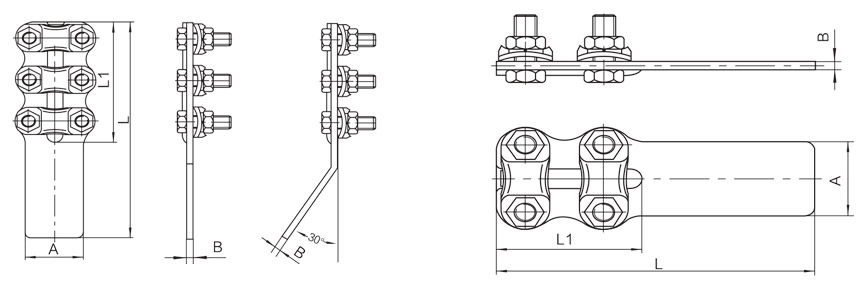

 Main Dimensions（mm)
A B L1 L
SL-1A/1B 35~50 4 40 6 65 145
SL-2A/2B 70~95 4 40 6 80 175
SL-3A/3B 120~150 6 50 7 125 225
SL-4A/4B 185~240 6 50 7 125 225


Aluminium terminAl connectors(85 CatAlog)


Catalog No. Conductor (mm2) Number
of bolt
 Main Dimensions(mm)
A B L1 L
SL-1A/1B 35~50 4 40 6 65 145
SL-2A/2B 70~95 4 40 6 80 175
SL-3A/3B 120~150 6 50 7 125 225
SL-4A/4B 185~240 6 50 7 125 225


Aluminium terminAl connectors(74 CatAlog)


Catalog No. Conductor (mm2) Main Dimensions(mm)
A B L1 L
SL-1(single hole) 35~50 40 6 65 120
SL-2(single hole) 70~95 40 6 80 136
SL-3(double holes) 35~50 40 6 65 145
SL~4(double holes) 70~95 40 6 80 175
SL-5(double holes) 120~150 50 7 125 225
SL-6(double holes) 185~240 50 7 125 225
SL-7(four holes) 120~150 80 7 125 240
SL-8(four holes) 185~240 80 7 125 240
