Overhead Line ConnectorHorizontal Terminal Connectors(type MGP)
Back

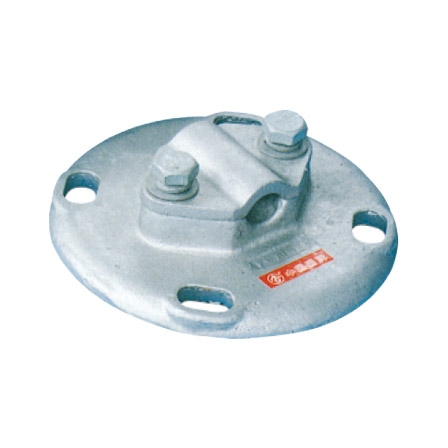

Horizontal Terminal Connectors(type MGP)


Online InquiryEmail Us

Specification

Catalog No. Bus-Bar Dia. (mm) Main Dimensions(mm) Weight (kg)
Ø a H b
MGP-50 50 50 50 80 14 2.5
MGP-60 60 60 80 85 16 3.2
MGP-70 70 70 80 85 16 4.0
MGP-80 80 80 80 85 16 4.2
MGP-90 90 90 100 105 18 4.6
MGP-100 100 100 100 105 18 5.0
MGP-110 110 110 100 105 18 5.8
MGP-120 120 120 100 105 18 6.0
MGP-130 130 130 125 130 20 7.2
MGP-150 150 150 125 130 20 8.2
MGP-170 170 170 150 160 22 8.5
MGP-200 200 200 150 170 22 13.9
MGP-250 250 250 150 170 24 19.5

Note: The power strip should be drilled using the drilling process, and the punching process with a press machine is not allowed.
