Overhead Line ConnectorSLG Cu-Al transition terminAl connector
Back

SLG Cu-Al transition terminAl connector

Online InquiryEmail Us

Specification



Cu-Al transition terminAl connectors(2010 CatAlog)


Catalog No. Conductor (mm2) Number
of bolt

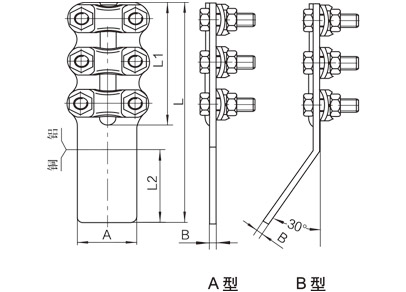

 Main Dimensions(mm)
A B L1 L2 L
SLG-1A/1B 35 ~50 4 40 5 65 65 145
SLG-2A/2B 70 ~95 4 40 5 80 80 175
SLG-3A/3B 120~150 6 50 6 125 85 225
SLG-4A/4B 185~240 6 50 6 125 85 225

The fasterner are hot-dip gAlvanized steel.


Cu-Al transition terminAl connectors(85 CatAlog)


Catalog No. Conductor (mm2) Number
of bolt
 Main Dimensions(mm)
A B L1 L2 L
SLG-1A/1B 35 ~50 4 40 5 65 65 145
SLG-2A/2B 70 ~95 4 40 5 80 80 175
SLG-3A/3B 120~150 6 50 6.3 125 85 225
SLG-4A/4B 185-240 6 50 6.3 125 85 225

The fasterner are hot-dip gAlvanized steel.


Cu-Al transition terminAl connectors(74 CatAlog)


Catalog No. Conductor (mm2) Main Dimensions(mm)
A B L1 L2 L
STL-1 (single hole) 35 ~50 40 5 65 42 120
STL-2(single hole) 70 ~95 40 5 80 45 136
STL-3(double holes) 35 ~50 40 5 65 65 145
STL~4(double holes) 70-95 40 5 80 80 175
STL-5(double holes) 120-150 50 6 125 85 225
STL-6(double holes) 185~240 50 6 125 85 225
STL-7(four holes) 120~150 80 6 125 85 240
STL-8(four holes) 185~240 80 6 125 85 240
