BimetAllic compression lug Cu-Al

Online InquiryEmail Us

Specification

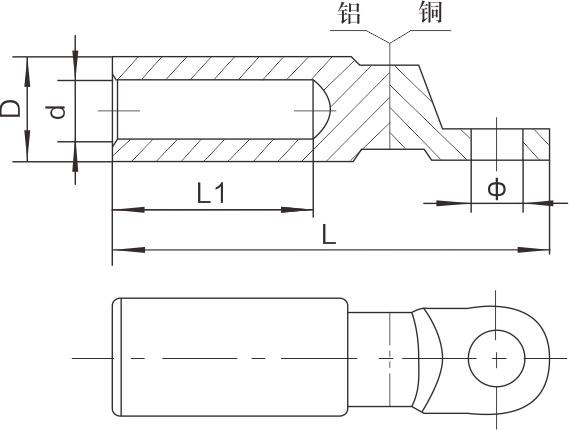

Catalog No. Main Dimensions(mm)
中 D d L L1
DTL-2-16 8.5 16 5.5 90 42
DTL-2-25 8.5 16 6.5 90 42
DTL-2-35 8.5 16 8.5 90 42
DTL-2-50 12.8 20 9.0 90 43
DTL-2-70 12.8 20 11.0 90 43
DTL-2-95 12.8 20 12.5 90 43
DTL-2-120 12.8 25 13.7 118 60
DTL-2-150 12.8 25 15.5 118 60
DTL-2-185 12.8 32 17.0 120 60
DTL-2-240 12.8 32 19.5 120 60
DTL-2-300 12.8 34 22.5 130 62
DTL-2-400 12.8 41 26.5 145 70
DTL-2-500 方头 47 29.5 200 90
DTL-2-630 方头 47 34.0 200 90

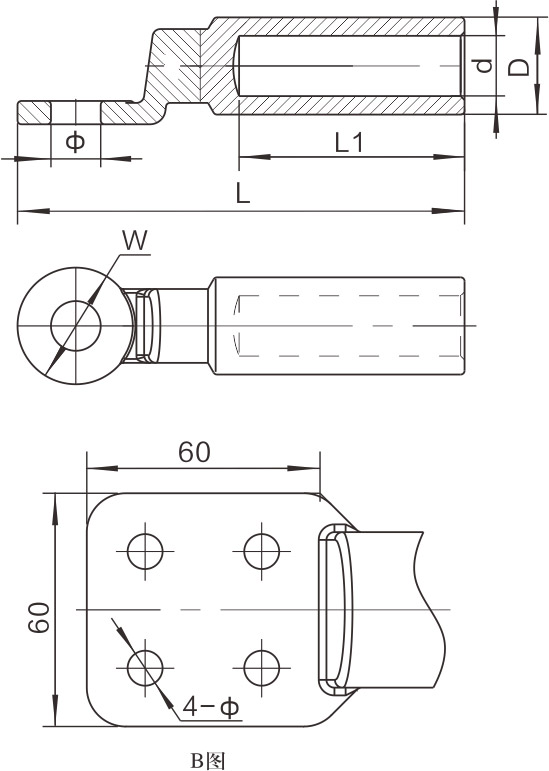

Catalog No. Main Dimensions(mm)
中 D d L L1 W
CAU-16 10.5 16 5.5 75 32 20
CAU-25 10.5 16 6.5 75 32 20
CAU-35 12.8 16 8.0 86 38 25
CAU-50 12.8 20 9.0 86 38 25
CAU-70 12.8 20 11.0 86 38 25
CAU-95 12.8 20 12.5 86 38 25
CAU-120 12.8 25 13.7 115 58 30
CAU-150 12.8 25 15.5 115 58 30
CAU-185 12.8 32 17.0 115 58 30
CAU-240 12.8 32 19.5 115 58 30
CAU-300 16.5 40 23.5 153 88 36
CAU-400 16.5 40 26.0 153 88 36
CAU-500 B图 47 29.1 200 100 B图
CAU-630 B图 47 32.5 200 100 B图
