GTY copper connecting tube

Online InquiryEmail Us

Specification

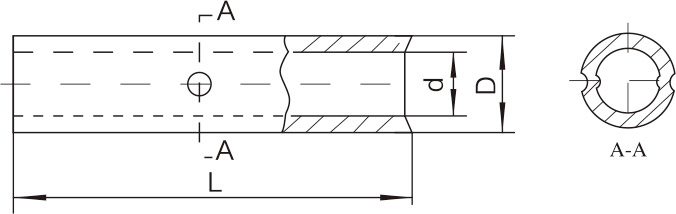

Catalog No. Main Dimensions(mm)
D d L
GTY-1.5 3.7 1.8 20
GTY-2.5 4.0 2.5 20
GTY-4 4.8 3.1 20
GTY-6 5.5 3.8 25
GTY-10 6.8 4.8 30
GTY-16 7.5 5.5 35
GTY-25 9.0 7.0 40
GTY-35 10.5 8.2 45
GTY-50 12.5 9.8 50
GTY-70 14.5 11.5 55
GTY-95 17.5 13.5 60
GTY-120 19.5 15.0 65
GTY-150 21.0 16.5 70
GTY-185 23.5 18.5 75
GTY-240 26.5 21.0 80
GTY-300 30.0 24.0 85
GTY-400 34.0 27.0 90
GTY-500 38.0 30.0 100
GTY-630 45.0 35.0 110
GTY-800 50.0 39.0 150
GTY-1000 56.0 44.0 170
