Aluminium Parallel Groove Clamp

Specification



Catalog No. Suitable
Conductor
(mm2)

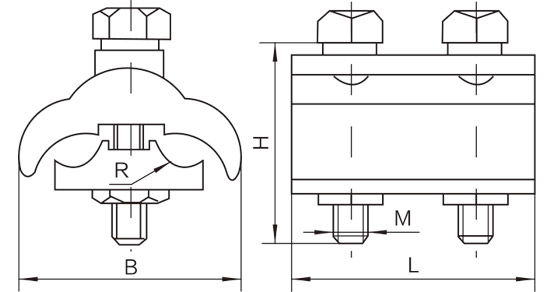

Main Dimensions(mm) Bolt No.
L B H R M
APG-A1 16~70 25 42 45 5.5 8 1
APG-A2 16-150 25 42 45 7.5 8 1
APG-B1 16~35 40 42 45 5.5 8 2
APG-B2 16~70 50 45 50 7.5 8 2
APG-B3 16-150 64 65 60 9.5 10 2
APG-B4 25~240 96 65 70 11.5 10 2
APG-C1 16~70 60 42 45 5.5 8 3
APG-C2 16-150 75 45 50 7.5 8 3
APG-C3 25~240 96 65 60 9.5 10 3
APG-C4 35-300 104 65 70 11.5 10 3
