Aerial Electrical FittingJY/LY splicing tube and insulation cover
Back
Application
JY/LY series connecting tube, suitable for overhead line in 1kV, 10kV, 20kV overhead insulated conductor Connection, connection pipe and our company special insulation cover supporting the use of insulation, protective effect.
产品特点
◆ 高强度铝合金制造,无磁滞损耗。
◆ 楔型弹力夹紧,接续可靠。
◆ 适于各种导线组合,适用性强。
◆ 线夹与导线接触面积大,接续电阻小。

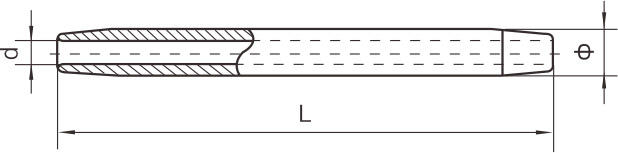

Specification
Catalog No.
|
Suitable Conductor
|
Main Dimensions(mm)
|
Grip Strength (kN)
|
配套绝缘罩
|
L
|
D
|
d
|
JY-35Y
|
JKLGYJ-35
|
7.6
|
20
|
130
|
4.9
|
JY-35/50
|
JY-50Y
|
JKLGYJ-50
|
9.0
|
20
|
140
|
6.7
|
JY-35/50
|
JY-70LY
|
JKLGYJ-70
|
11.0
|
22
|
170
|
9.8
|
JY-70/95
|
JY-95LY
|
JKLGYJ-95
|
12.5
|
24
|
180
|
13.0
|
JY-70/95
|
JY-120LY
|
JKLGYJ-120
|
14.0
|
26
|
210
|
16.5
|
JY-120/150
|
JY-150LY
|
JKLGYJ-150
|
15.5
|
28
|
240
|
20.0
|
JY-120/150
|
JY-185LY
|
JKLGYJ-185
|
17.0
|
32
|
260
|
25.4
|
JY-185/240
|
JY-240LY
|
JKLGYJ-240
|
19.5
|
34
|
290
|
33.0
|
JY-185/240
|
JY-300LY
|
JKLGYJ-300
|
22.0
|
36
|
310
|
38.7
|
JY-300
|
Catalog No.
|
Suitable Conductor
|
Main Dimensions(mm)
|
Grip Strength(kN)
|
L
|
D
|
d
|
L1
|
D1
|
d1
|
JY-70/10
|
JKLGYJ70/10
|
360
|
26
|
13.0
|
110
|
12
|
4.5
|
21.0
|
JY-95/15
|
JKLGYJ95/15
|
430
|
26
|
15.0
|
130
|
14
|
5.7
|
31.5
|
JY-120/20
|
JKLGYJ120/20
|
430
|
30
|
16.0
|
130
|
14
|
6.2
|
36.9
|
JY-150/25
|
JKLGYJ150/25
|
500
|
30
|
18.5
|
150
|
14
|
7.0
|
48.7
|
JY-185/25
|
JKLGYJ185/25
|
520
|
32
|
20.5
|
150
|
14
|
7.0
|
53.5
|
JY-240/30
|
JKLGYJ240/30
|
570
|
36
|
23.0
|
170
|
16
|
7.9
|
68.0
|
