Splicing fittingCu-Al Parallel Groove Clamp
Back

Cu-Al Parallel Groove Clamp

Online InquiryEmail Us

Specification

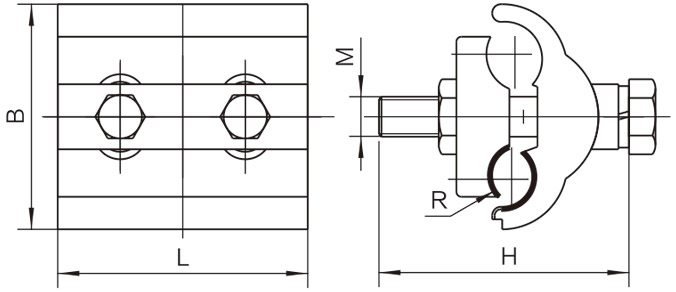

Catalog No. Suitable Conductor(mm2) Main Dimensions(mm) Bolt No.
L B H R M
CAPG-A1 16-70/6-50 25 42 45 5.5/4.5 8 1
CAPG-A2 25~150/10~95 25 42 45 7.5/6 8 1
CAPG-B1 16~70/6~50 40 42 45 5.5/4.5 8 2
CAPG-B2 25~150/10~95 50 45 50 7.5/6 8 2
CAPG-B3 35~200/25~185 64 65 60 9.5/9 10 2
CAPG-C1 16~70/6~50 60 42 45 5.5/4.5 8 3
CAPG-C2 25~150/10~95 75 45 50 7.5/6 8 3
CAPG-C3 35~200/25~185 96 65 60 9.5/9 10 3
CAPG-C4 35~300/35~240 104 65 70 11.5/10 10 3
