Splicing sleeves for ACSR/AS (Hydraulic compression type)

Specification

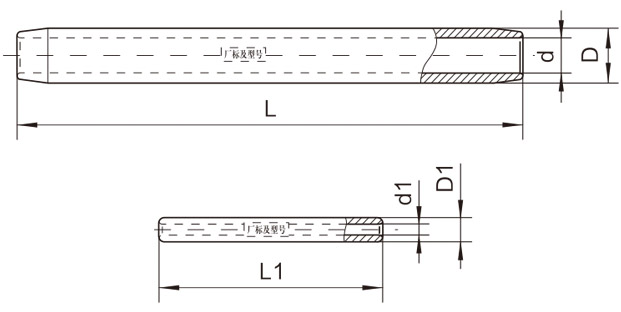

Catalog No.	Suitable Conductor (mm²)	Main Dimensions(mm)						Grip Strength (kN)	Weight (kg)
Catalog No.	Suitable Conductor (mm²)	L	D	d	L1	D1	d1	Grip Strength (kN)	Weight (kg)
JY-50/8	LGJ-50/8	300	26	14.0	100	12	3.8	16.1	0.41
JY-50/30	LGJ-50/30	380	30	16.0	190	14	7.4	40.5	0.70
JY-70/10	LGJ-70/10	360	26	13.0	110	12	4.5	22.3	0.4S
JY-70/40	LGJ-70/40	440	32	20.0	220	18	8.8	55.4	0.96
JY-95/15	LGJ-95/15	430	26	15.0	130	14	5.7	33.3	0.55
JY-95/20	LGJ-95/20	430	26	15.0	130	14	6.2	35.4	0.55
JY-95/55	LGJ-95/55	500	34	22.0	260	20	10.2	74.2	1.22
JY-120/7	LGJ-120/7	400	30	16.0	120	12	3.6	26.2	0.64
JY-120/20	LG J-120/20	430	30	16.0	130	14	6.2	39.0	0.72
JY-120/25	LGJ-120/25	490	30	17.0	150	14	7.0	45.5	0.77
JY-120/70	LGJ-120/70	580	36	24.0	290	22	11.5	93.5	1.57
JY-150/8	LGJ-150/8	440	30	17.5	100	12	4.0	31.3	0.65
JY-150/20	LGJ-150/20	470	30	18.0	130	14	6.2	44.3	0.70
JY-150/25	LGJ-150/25	500	30	18.5	150	14	7.0	51.4	0.73
JY-150/35	LGJ-150/35	530	30	19.0	180	16	8.2	61.8	0.84
JY-185/10	LGJ-185/10	490	32	19.5	120	12	4.5	38.9	0.74
JY-185/25	LGJ-185/25	520	32	20.5	150	14	7.0	56.5	0.80
JY-185/30	LGJ-185/30	540	32	20.5	170	16	7.6	61.1	0.92
JY-185/45	LGJ-185/45	570	32	21.0	200	18	g.o	76.2	1.01
JY-210/10	LGJ-210/10	520	34	20.5	140	12	4.5	42.9	0.93
JY-210/25	LGJ-210/25	540	34	21.5	160	14	7.3	62.7	0.95
JY-210/35	LGJ-210/35	560	34	22.0	180	16	8.2	70.6	1.02
JY-210/50	LGJ-210/50	600	34	22.0	210	18	9.6	86.3	1.22
JY-240/30	LGJ-240/30	570	36	23.0	170	16	7.9	71.9	1.18
JY-240/40	LGJ-240/40	590	36	23.0	190	16	8.7	79.2	1.20
JY-240/55	LGJ-240/55	640	36	24.0	230	20	10.3	97.0	1.45
JY-300/15	LGJ-300/15	560	40	24.5	120	14	5.7	64.7	1.31
JY-300/20	LGJ-300/20	580	40	25.0	140	14	6.5	71.9	1.31
JY-300/25	LGJ-300/25	600	40	25.5	160	14	7.3	79.3	1.39
JY-300/40	LGJ-300/40	640	40	25.5	190	16	8.7	87.6	1.56
JY-300/50	LGJ-300/50	660	40	26.0	210	18	9.6	98.3	1.60
JY-300/70	LGJ-300/70	710	42	27.0	260	22	11.5	121.6	2.10
JY-400/20	LGJ-400/20	580	45	28.5	140	14	6.5	84.4	1.62
JY-400/25	LGJ-400/25	660	45	28.5	160	14	7.3	91.2	1.88
JY-400/35	LGJ-400/35	680	45	28.5	180	16	8.2	98.7	1.98
JY-400/50	LGJ-400/50	730	45	29.5	220	20	9.9	117.3	2.26
JY-400/65	LGJ-400/65	760	48	29.5	250	22	11.0	128.5	2.82
JY-400/95	LGJ-400/95	830	48	31.0	300	26	13.2	162.8	3.30
JY-500/35	LGJ-500/35	760	52	31.5	180	16	8.2	113.6	2.95
JY-500/45	LGJ-500/45	760	52	31.5	200	18	9.1	121.7	3.05
JY-500B5	LGJ-500/65	820	52	32.5	250	22	11.0	146.3	3.51
JY-630/46	LGJ-630/45	840	60	35.5	200	18	9.1	141.3	4.47
JY-630/55	LGJ-630/55	880	60	36.0	230	20	10.3	156.2	4.80
JY-630/80	LGJ-630/80	940	60	36.5	280	24	12.3	183.3	5.27
JY-600/55	LGJ-800/55	950	65	40.0	230	20	10.3	182.0	5.73
JY-800/70	LGJ-800/70	980	65	40.5	260	22	11.5	196.7	5.97
JY-800/100	LGJ-800/100	1050	65	40.5	310	26	13.7	229.1	6.81
