Spacers For Double bus-bar Conductor

Specification



Catalog No. Suitable Conductor
Dia. (mm)

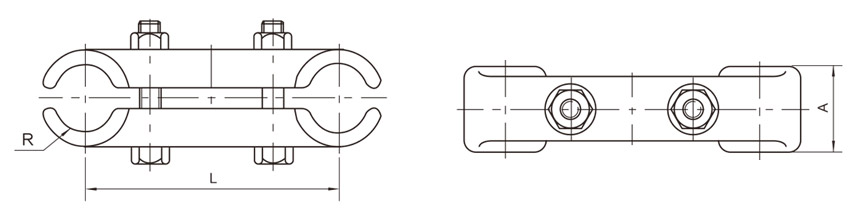

Main Dimensions(mm) Weight (kg)
A L R
MRJ-4/120 19.02-21.28 50 120 11 0.4
MRJ-5/120 23.70~27.36 60 120 14 0.6
MRJ-6/120 30.16~33.20 70 120 17 0.7
MRJ-4/200 19.02~21.28 50 200 11 0.9
MRJ-5/200 23.70~27.36 60 200 14 1.0
MRJ-6/200 30.16~33.20 70 200 17 1.2
MRJ-4/400 19.02~21.28 50 400 11 2.1
MRJ-5/400 23.70~27.36 60 400 14 2.5
MRJ-6/400 30.16~33.20 70 400 17 2.8

The clamp is aluminium alloy,the other parts are hot-dip galvanized steel.
