Specification

Catalog No.	适应导线 (mm²)	Main Dimensions(mm)		Axial load (kN)	Weight (kg)

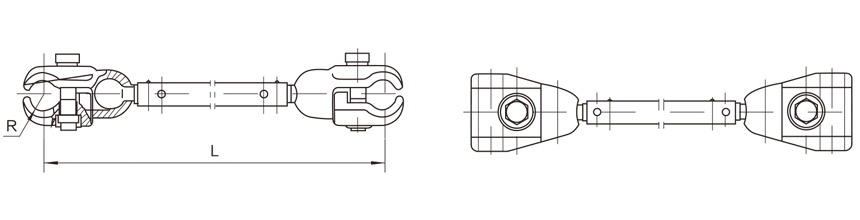

Catalog No.	适应导线 (mm²)	L	R	Axial load (kN)	Weight (kg)
FJQ-204	185~240	200	11.0	7	0.85
FJQ-205	300~400	200	14.5	10	1.05
FJQ-403	120~150	400	9.5	7	1.00
FJQ-404	185~240	400	11.0	7	1.00
FJQ-405	300-400	400	14.5	10	1.20
FJQ-455	300-400	450	15.4	10	2.43

The body is and keeps are aluminium alloy,the other parts are hot-dip galvanized steel.
