Spacers For Double bus-bar Conductor

Specification



Catalog No. Suitable Conductor
Dia.(mm)

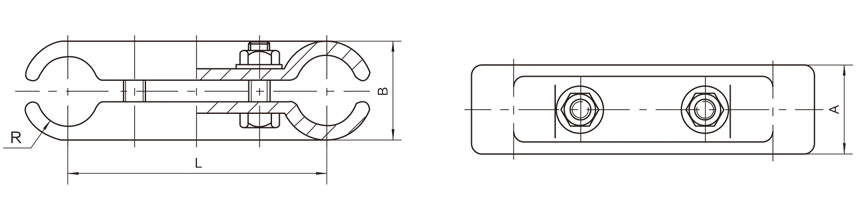

Main Dimensions(mm) Weight
(kg)
A B L R
MRJ-600K/120 LGKK-600 50 68 120 26 0.7
MRJ-600K/200 LGKK-600 60 70 200 26 2.2
MRJ-600K/400 LGKK-600 60 70 400 26 2.5
MRJ-600K/450 LGKK-600 60 70 450 26 3.3
MRJ-900K/120 LGKK-900 50 65 120 26 0.7
MRJ-900K/200 LGKK-900 50 68 200 26 2.2
MRJ-900K/400 LGKK-900 50 68 400 26 2.5
MRJ-900K/450 LGKK-900 50 68 450 26 3.3
MRJ-1400K/400 LGKK-1400 70 83 400 29 3.5
MRJ-1400/120 LGJQT-1400 50 68 120 26 0.7
MRJ-1400/200 LGJQT-1400 50 68 200 26 2.2
MRJ-1400/400 LGJQT-1400 60 70 400 26 2.5
MRJ-1400/450 LGJQT-1400 60 70 450 26 3.3
MRJ-1440N/200 NAHLGJQ-1400 60 70 200 26 2.2
MRJ-1440N/400 NAHLGJQ-1400 60 70 400 26 2.5

The clamp is aluminium alloy,the other parts are hot-dip galvanized steel.
