Line HardwareQH Ball eyes
Back

Specification



Stable design
Catalog No.
Catalog No. Main Dimensions(mm) Designat
ed size of
coupling
Specified
Failure Load
(kN)
Weight
(kg)

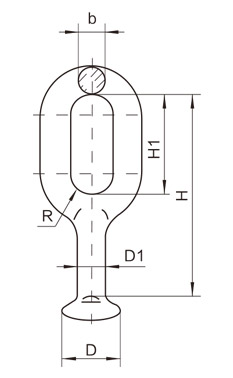

R b H H1 D D1


QH-7 12 16 100 57 33.3 17 16 70 0.6


QH-10 12 16 110 60 33.3 17 16 100 1.1


QH-12 11 19 90 45 33.3 17 16 120 1.1


QH-16 13 18 127 80 41.0 21 20 160 1.3


QH-21 16 20 150 80 41.0 21 20 210 1.3


QH-30 17 22 150 98 49.0 25 24 300 1.7
QH-07100


12 16 100 57 33.3 17 16 70 0.6

Hot-dip galvanized steel.
