W Socket clevis

Online InquiryEmail Us

Specification



Stable design
Catalog No. 		Catalog No. Main Dimensions(mm) Designated
size of
coupling
 Specified
Failure Load
(kN) 		Weight
(kg)

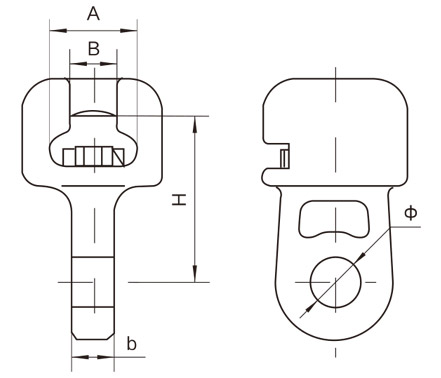

Ø b H A B
W-7A 20 16 70 34.5 19.2 16 70 0.80
W-7B 20 16 115 34.5 19.2 16 70 0.92
W1-10 20 18 85 34.5 19.2 16 100 0.90
W1-12 24 20 85 34.5 19.2 16 120 1.30
W-30 39 32 110 51.0 27.5 24 300 3.50
W-0770 20 16 70 34.5 19.2 16 70 0.80
W-07115 20 16 115 34.5 19.2 16 70 1.00
W-1085 20 16 85 34.5 19.2 16 100 1.10
W-1290 24 16 90 34.5 19.2 16 120 1.30
W-1695 26 18 95 42.5 23.0 20 160 1.90
W-32110 33 28 110 51.0 27.5 24 320 4.20

碗头挂板为可锻铸铁或者锻制件，钢制件热键锌。W型锁紧销为不锈钢件。
