Line HardwareQS Ball eyes
Back

Specification



Stable design
Catalog No.
Catalog No. Main Dimensions(mm) Designat
ed size of
coupling
Specified
Failure Load
(kN)
Weight
(kg)

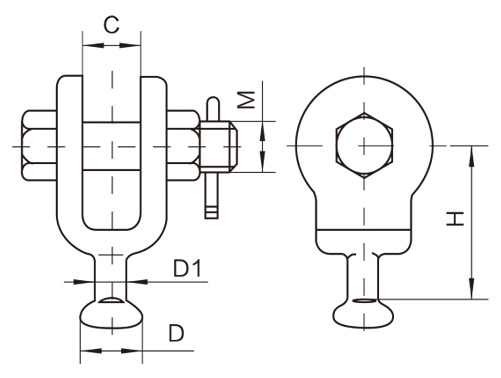

C M H D1 D


Q-7U 20 16 75 17 33.3 16 70 0.56


Q-12U 22 22 94 17 33.3 16 120 0.85
QS-0775


20 16 75 17 33.3 16 70


0.9
QS-1075


22 18 75 17 33.3 16 100 0.9
QS-1275


20 22 75 17 33.3 16 120 1.0
QS-1680


22 24 80 21 41.0 20 160 1.2

The cotter pin are stainless steel.the other parts are Hot-dip galvanized steel.
