Shackle

Online InquiryEmail Us

Specification



Stable design
Catalog No. 		Catalog No. Main Dimensions(mm) Specified
Failure Load
(kN) 		Weight
(kg)

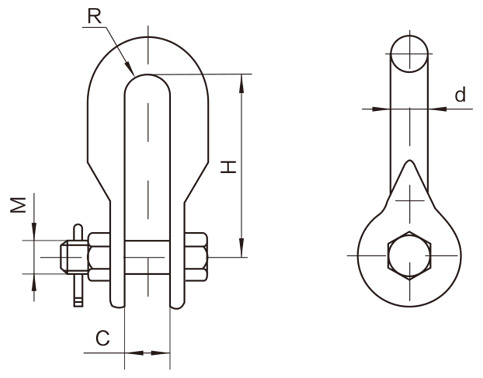

C M d H R
U-7 20 16 16 80 10 70 0.44
U-10 22 18 18 85 11 100 0.54
U-12 24 22 20 90 12 120 0.96
U-16 26 24 22 95 13 160 1.47
U-21 30 27 25 100 15 210 2.20
U-25 34 30 28 110 17 250 2.79
U-30 38 36 30 130 19 300 3.75
U-0770 20 16 16 70 10 70 0.50
U-1085 20 18 16 85 10 100 0.60
U-1290 22 22 18 90 11 120 1.00
U-1695 24 24 20 95 12 160 1.50
U-21100 24 24 20 100 12 210 1.80
U-25110 28 27 24 110 14 250 2.10
U-32115 36 32 28 130 18 320 3.00
UK-0770 24 16 16 70 12 70 0.50
UK-1085 26 18 16 85 13 100 0.60
UK-1290 26 22 18 90 13 120 1.10
UK-1695 28 24 20 95 14 160 1.50
UK-21100 30 24 20 100 15 210 1.80
UK-32130 36 30 28 130 18 320 3.40
UK-0770T 28 16 16 70 12 70 0.50
UK-1290T 28 22 18 90 13 120 1.10

The cotter pin are stainless steel.the other parts are Hot-dip galvanized steel.
