Specification

Catalog No.	Application of wire diameter (mm)	Main Dimensions(mm)					Specified Failure Load (kN)	Weight (kg)

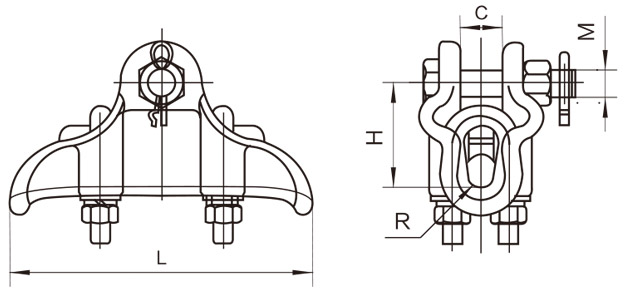

Catalog No.	Application of wire diameter (mm)	L	C	R	H	M	Specified Failure Load (kN)	Weight (kg)
XGH-2	5.1-12.5	166	25	8.0	52.5	16	40	1.0
XGH-3	12.4-17.0	200	23	11.5	50.5	16	40	1.5
XGH-3A	12.4-17.0	180	22	10.0	50.0	16	50	1.5
XGH-4	19.0-23.5	225	27	13.5	59.5	16	40	2.3
XGH-5	24.2-28.0	260	32	16.0	70.0	16	60	3.0
XGH-6	25.0-35.0	216	35	17.5	68.0	16	60	3.6

The clamp body and keepers are malleable iron. cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-dip galvanized.
