Specification

Catalog No.	Application of wire diameter (mm)	Main Dimensions(mm)					Specified Failure Load (kN)	Weight (kg)

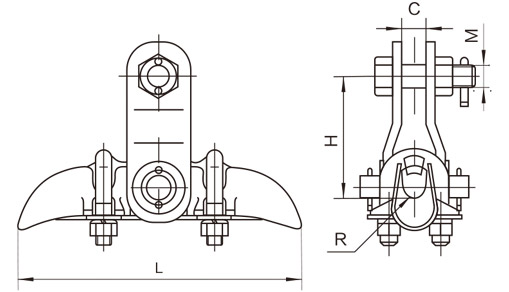

Catalog No.	Application of wire diameter (mm)	L	C	R	H	M	Specified Failure Load (kN)	Weight (kg)
XGU-1	5.0~7.0	175	18	4.0	82	16	40	1.4
XGU-2	7.1~13.0	175	18	7.0	82	16	40	1.8
XGU-3	13.1~21.0	198	18	11.0	102	16	40	2.0
XGU-4	21.1~26.0	215	18	13.5	110	16	40	3.0

The boady and keeper are made of malleable iron.cotter-pins are made of stainless steel, other parts are made of steel.AII ferrous parts are hot-dip galvanized.
