Specification

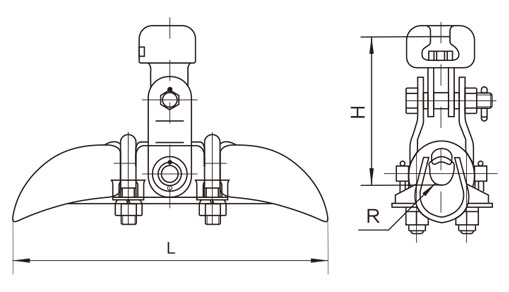

Catalog No.	Application of wire diameter (mm)	Main Dimensions(mm)			Specified Failure Load (kN)	Weight (kg)
Catalog No.	Application of wire diameter (mm)	L	R	H	Specified Failure Load (kN)	Weight (kg)
XGU-5A	23-33	300	17	157	70	5.7
XGU-6A	34-45	300	23	163	70	6.1

The clamp boad,keepers and socket-clevis are malleable iron,the closed-pine is stainless steel work.the other parts are steel,All ferrows parts are hot-dip galvanized.
