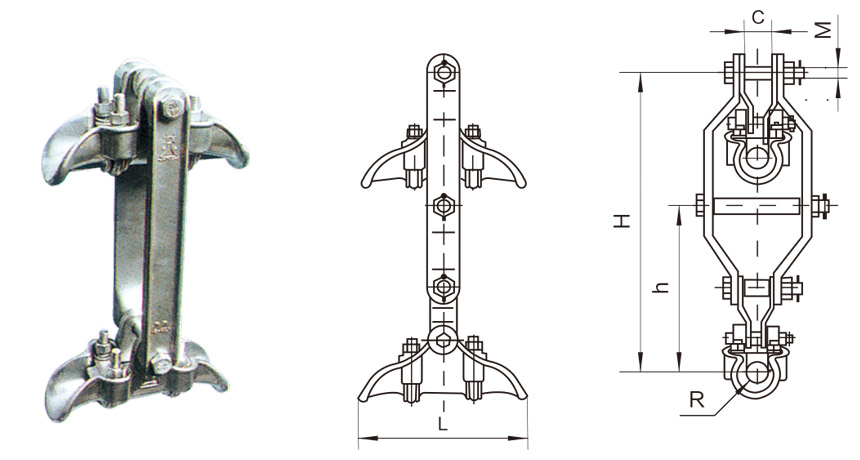

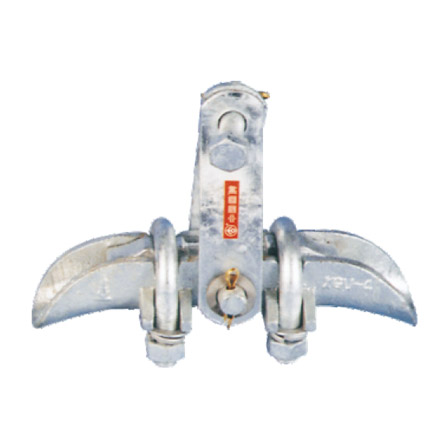

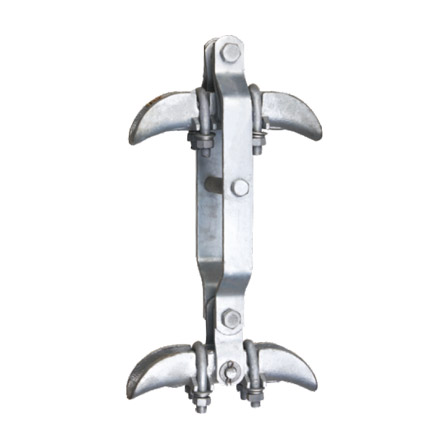

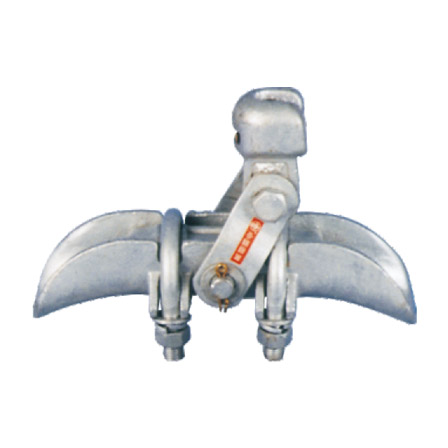

Suspension clamps for twin conductors

Specification



Catalog No. Application of
wire diameter
(mm)
Main Dimensions(mm) Specified Failure
Load (kN)
Weight
(kg)

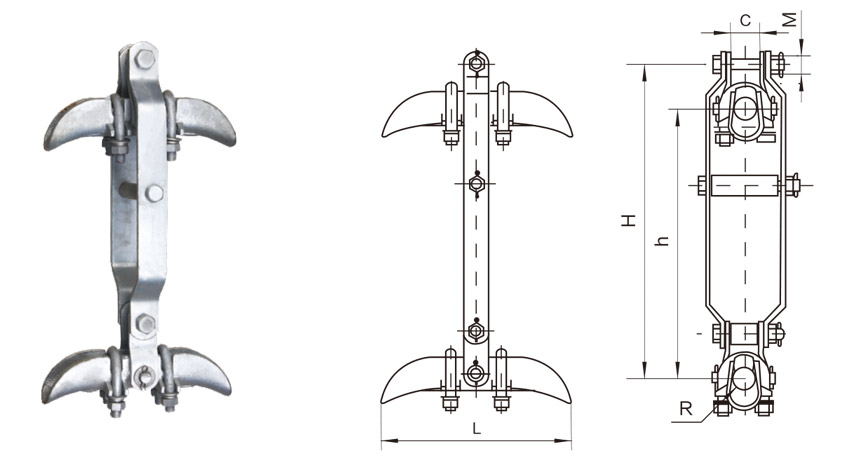

L C R H h M
XCS-4 21~26 250 20 13.5 490 400 18 70 9.3
XCS-5 23~33 300 38 17.0 490 400 18 100 10.8
XCS-6 34~45 300 38 23.0 495 400 18 100 12.5




Catalog No.
Application of
wire diameter
(mm)
Main Dimensions(mm) Specified Failure
Load (kN)
Weight
(kg)
L C R H h M
XCS-4H 21.0~26.0 225 42 13.5 530 400 16 70 10.2
XCS-5H 26.0~31.5 300 44 16.0 545 400 18 100 11.4
XCS-6H 32.0~43.0 300 50 22.0 550 400 18 120 12.9

The clamp body and keepers are malleable iron. cotter-pins are stainless steelt. the other parts are steel. All ferrous parts are hot-dip galvanized.
