Strain clamp (bolt type)

Specification




Catalog No. Suitable Conductor
Dia.(mm)

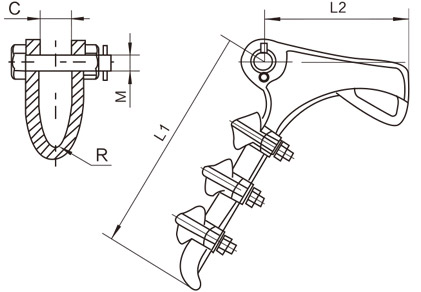

Main Dimensions(mm) U bolt Specified
Failure
Load(kN)
Weight
(kg)
M C L1 L2 R Number 直径

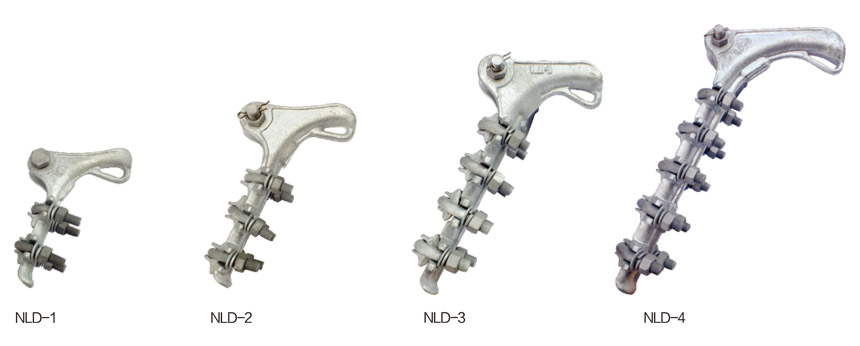

NLD-1 5.0~10.0 16 18 150 120 6.5 2 12 40 1.24
NLD-2 10.1~14.0 16 18 205 130 8.0 3 12 40 1.90
NLD-3 14.1~18.0 18 22 310 160 11.0 4 16 70 4.24
NLD-4 18.1~23.0 18 25 410 220 12.5 5 16 90 6.53
NLD-4B 18.1~23.0 18 27 370 200 12.5 4 16 90 6.57

The clamp body and keepers are malleable iron,the closed-pin stainless steelwork,the other parts are steel.
