Strain clamp (hydraulic type)

Specification



Catalog No. Suitable
Conductor
(mm2)
Main Dimensions(mm) Grip
Strength
(kN)
Weight

(kg)

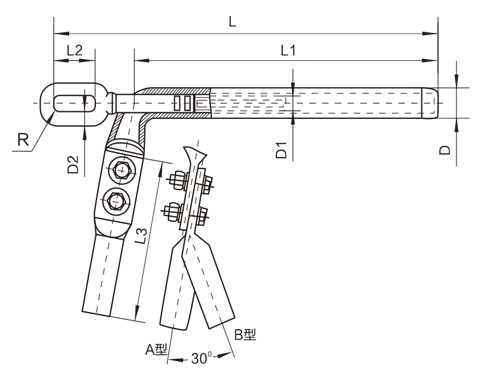

L L1 L2 L3 D D1 D2 R
NY-50/8 LGJ-50/8 355 250 55 190 26 12 16 10 16.1
NY-50/30 LGJ-50/30 405 300 55 190 30 14 16 10 40.5 1.59
NY-70/10 LGJ-70/10 385 280 55 200 26 12 16 10 22.3 1.28
NY-70/40 LGJ-70/40 455 350 55 200 32 18 16 10 55.4 1.90
NY-95/15 LGJ-95/15 385 280 55 205 26 14 16 10 33.3 1.25
NY-95/20 LGJ-95/20 385 280 55 205 26 14 16 10 35.4 1.29
NY-95/55 LGJ-95/55 495 380 65 205 34 20 18 11 74.2 2.26
NY-120/7 LGJ-120/7 385 280 55 205 30 12 16 10 26.2
NY-120/20 LGJ-120/20 405 300 55 205 30 14 16 10 39.0 1.55
NY-120/25 LGJ-120/25 425 320 55 205 30 14 16 10 45.5 1.50
NY-120/70 LGJ-120/70 535 420 65 215 36 22 18 11 93.5 2.66
NY-150/8 LGJ-150/8 415 295 55 210 30 12 16 10 31.3 1.54
NY-150/20 LGJ-150/20 435 320 65 210 30 14 16 10 44.3 1.47
NY-150/25 LGJ-150/25 445 330 65 210 30 14 16 10 51.4 1.59
NY-150/35 LGJ-150/35 465 350 65 210 30 16 16 10 61.8 1.60
NY-185/25 LGJ-185/25 465 350 65 230 32 14 16 10 56.5 1.99
NY-185/30 LGJ-185/30 465 350 65 230 32 16 16 10 61.1 2.03
NY-185/45 LGJ-185/45 485 370 65 230 32 18 18 11 76.2 2.22
NY-240/30 LGJ-240/30 505 390 65 230 36 16 18 11 71.9 2.59
NY-240/40 LGJ-240/40 505 390 65 250 36 16 18 11 79.2 2.59
NY-240/55 LGJ-240/55 540 420 65 250 36 20 20 12 97.0 2.87
NY-300/15 LGJ -300/15 495 380 65 250 40 14 16 10 64.7 2.92
NY-300/20 LGJ-300/20 510 390 70 265 40 14 18 11 71.9 2.92
NY-300/25 LGJ-300/25 520 400 70 265 40 14 18 11 79.3 2.97
NY-300/40 LGJ-300/40 540 420 70 265 40 16 18 11 87.6 3.07
NY-300/50 LGJ-300/50 557 430 78 265 40 18 20 12 98.3 3.23
NY-300/70 LGJ-300/70 563 460 78 265 42 22 22 13 121.6 3.82
NY-400/20 LGJ-400/20 560 440 70 270 45 14 18 11 84.4 3.69
NY-400/25 LGJ-400/25 560 440 70 270 45 14 18 11 91.2 3.62
NY-400/35 LGJ-400/35 573 440 78 270 45 16 20 12 98.7 3.89
NY-400/50 LGJ-400/50 593 460 78 270 45 20 22 13 117.3 4.14
NY-400/65 LGJ-400/65 616 480 78 270 48 22 22 13 128.5 4.22
NY-400/95 LGJ-400/95 663 520 80 270 48 26 24 15 162.8 5.23
