Strain clamps for steel wire strand (comperssion type)

Specification



Catalog No. Dia. of steel
wire(mm)

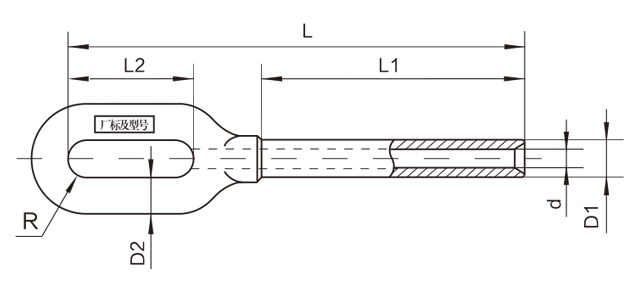

Main Dimensions(mm) Grip
Strength
(kN)
Weight
(kg)
L L1 L2 D1 D2 d R
NY-35G 7.8 200 115 55 16 16 8.4 10 45 0.47
NY-50G 9.0 215 130 55 18 16 9.7 10 60 0.51
NY-55G 9.6 225 140 55 20 16 10.2 10 70 0.58
NY-70G 11.0 250 155 65 22 18 11.7 11 88 0.76
NY-80G 11.5 260 175 55 24 18 12.2 11 90 0.89
NY-100G 13.0 285 185 65 26 20 13.5 11 123 1.36
NY-120G 14.0 313 195 78 28 22 14.7 12 143 1.53
NY-135G 15.0 338 215 78 30 22 15.7 13 164 1.65
NY-150G 16.0 335 230 80 32 24 16.7 15 187 1.72

Hot-dip galvanized steel.



Stable design
Catalog No.
steel wire Main Dimensions (mm) Grip
Strength
(kN)
L L2 D1 D2 d R
NY-35G GJ-35 210 50 16 16 8.4 10 45
NY-50G GJ-50 230 55 18 16 9.7 10 60
NY-80G GJ-80 295 80 24 18 12.2 12 100
NY-100G GJ-100 315 80 26 20 13.7 13 110

Hot-dip galvanized steel.
