Splicing sleeves for steel wire (hydraulic comperssion and explosive overlap joint)

Specification



Catalog No. Suitable Steel
wire
(mm2)
Main Dimensions(mm) Grip
Strength
(kN)
Weight
(kg)

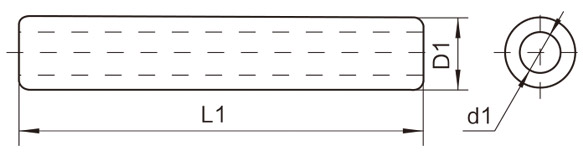

L1 D1 d1
JY-25G GJ-25 190 14 7.2 33 0.17
JY-35G GJ-35 220 16 8.4 45 0.30
JY-50G GJ-50 240 18 9.6 60 0.40
JY-55G GJ-55 240 22 10.3 65 0.56
JY-70G GJ-70 290 22 11.7 88 0.65
JY-80G GJ-80 300 24 12.0 100 0.80
JY-100G GJ-100 340 26 13.7 123 1.00
JBD-35G GJ-35 110 22 16.0 45 0.15
JBD-50G GJ-50 130 25 17.0 60 1.27
JBD-55G GJ-55 130 26 18.0 70 0.28
JBD-70G GJ-70 150 28 20.0 88 0.35
JBD-100G GJ-100 170 32 23.0 123 0.52

hot-dip galvanized steel.
